Top Sash Meeting Rail for Timber Sash Windows

Regular price £13.91 inc. VAT
4.7 rated on (100+ reviews)
In stock
Usually ships within 24 hours
FREE cutting service

Let us know what sizes you need and we can cut them to your spec.

Eg (1 of 100x200x2.4m)

Free shipping
100% secure payments
Industry leading quality

Ask our instore experts

Description

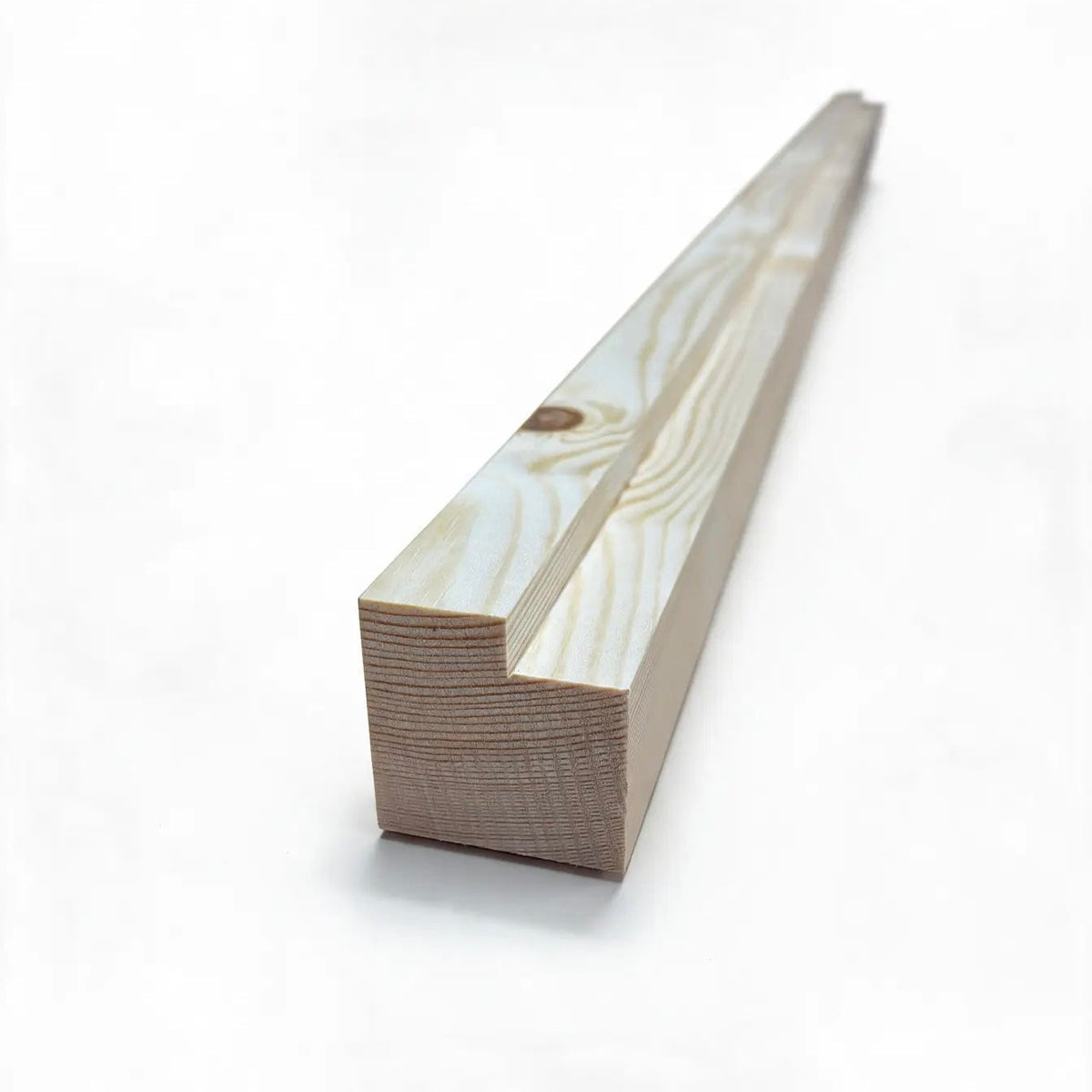

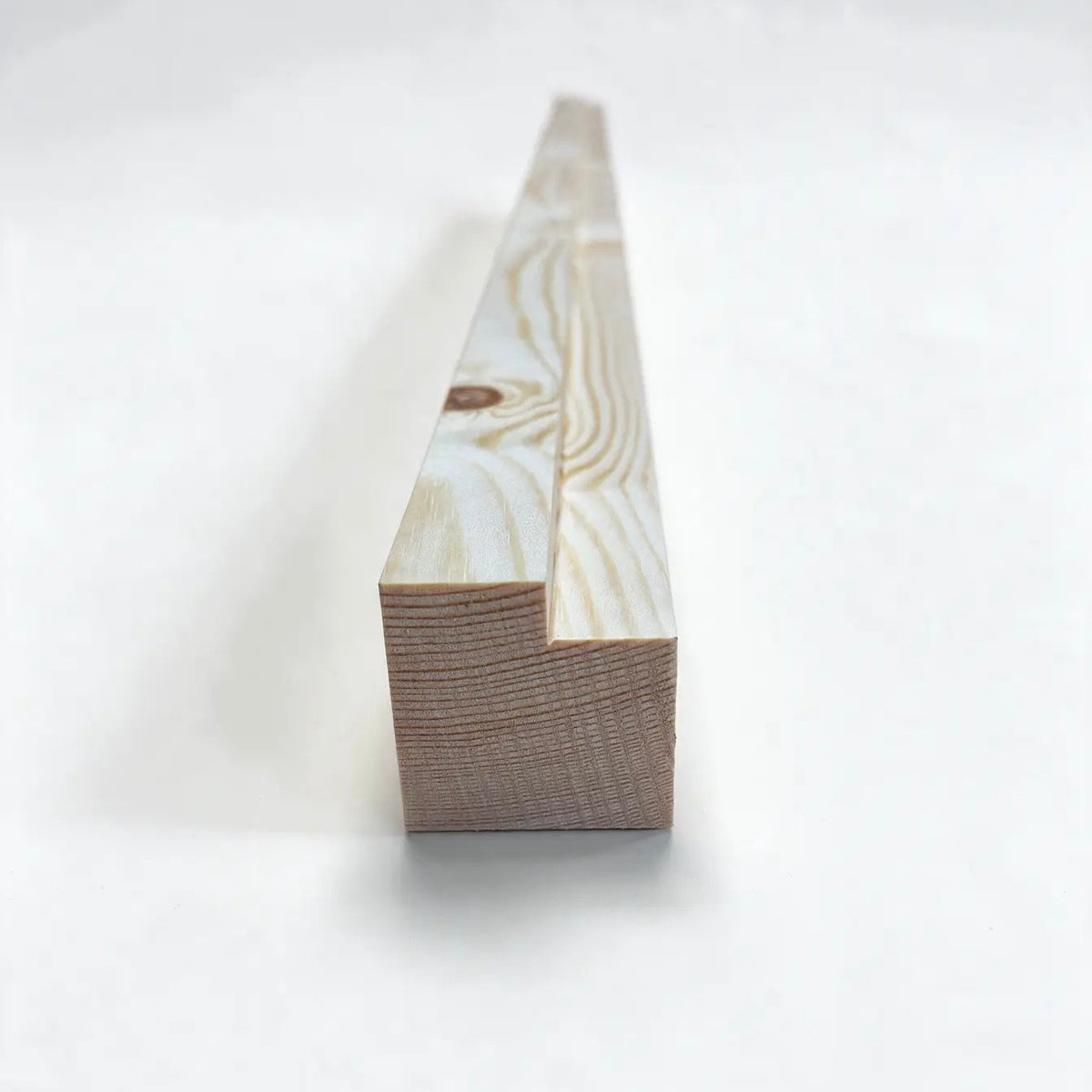

The top sash meeting rail forms the bottom horizontal edge of the upper sash in a double-hung timber sash window. It meets the top rail of the lower sash when closed, creating the traditional central joint.

Precision-machined from sustainably sourced timber and supplied in 1.2 metre lengths, it is available in single-glazed and heritage double-glazed versions for repair, restoration and new sash construction. The double-glazed option is machined to accommodate a 12mm slim sightline double-glazed unit. Choose the profile that matches your glazing and existing joinery.

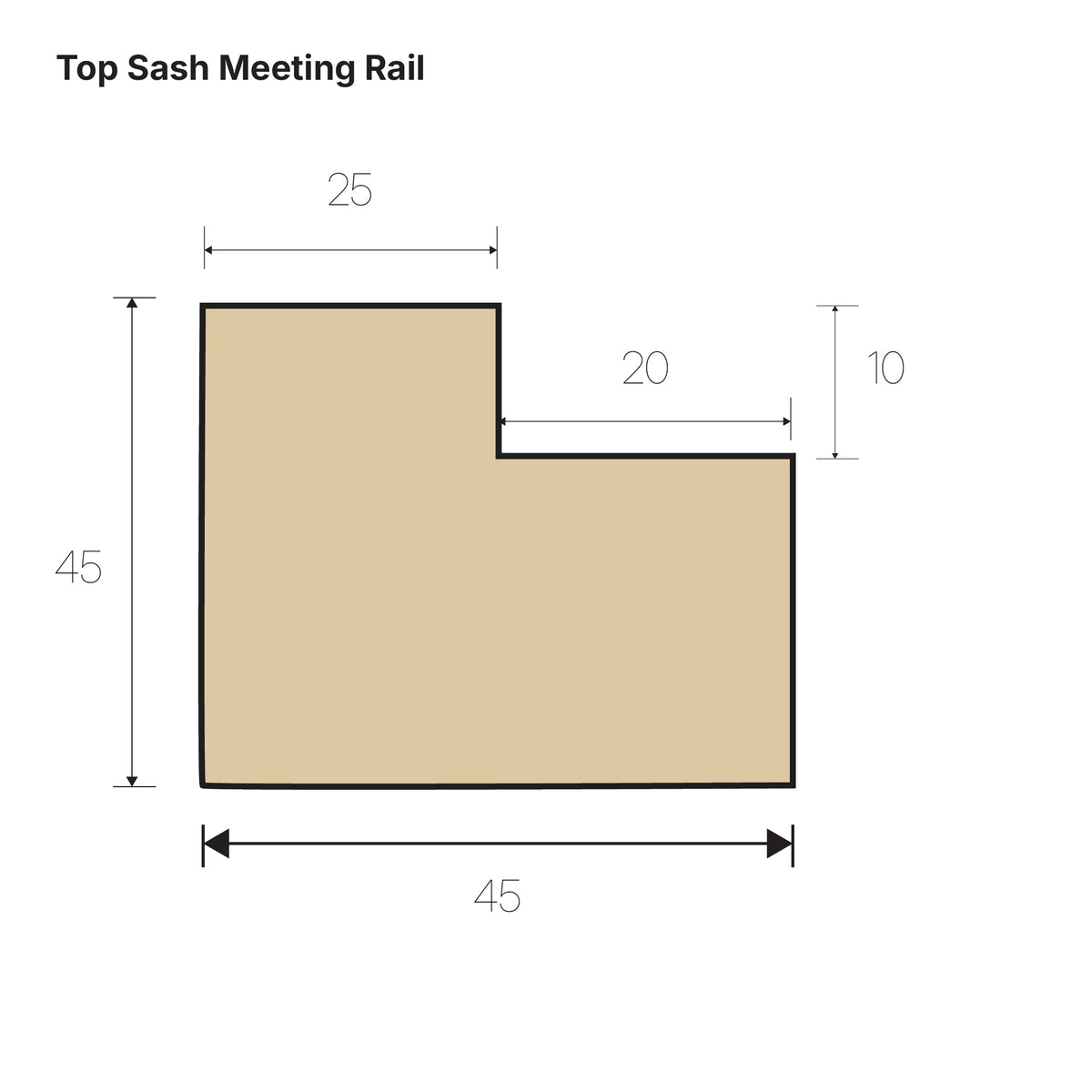

Specifications

Property Detail
Material Sustainably sourced timber
Finish Machined, ready for preparation, priming and painting
Length 1.2 m / 1200 mm
Single-glazed option Traditional meeting rail section for single glazing
Double-glazed option Rebated or grooved meeting rail profile machined for a 12mm slim sightline double-glazed unit
Application Bottom horizontal rail of the upper sash

What it's used for

  • Replacing a damaged or rotten meeting rail on the upper sash

  • Restoring traditional single-glazed timber sash windows

  • Making or adapting suitable sash assemblies for 12mm slim sightline double-glazed units using the double-glazed version

  • Matching existing period joinery during sash window refurbishment

  • Pairing with compatible lower sash meeting rails, stiles, glazing bars and beads for a complete sash assembly

Fitting and handling

Store the rail flat, off the ground, in a dry, ventilated space. Allow it to acclimatise indoors for at least 48 hours before cutting or fitting.

Check the profile and dimensions against your existing sash, adjoining meeting rail and glazing requirements. Cut to the required length and assemble using suitable joinery adhesive and fixings, ensuring the sash remains square and the meeting rails align correctly.

Prepare and prime all faces, including cut ends and end grain, before glazing and applying a compatible exterior finish.

When fitting 12mm slim sightline double-glazed units, follow all glazing installation instructions supplied by the unit manufacturer.

Changing from single to double glazing increases the sash weight. Have the counterbalance weights and sash hardware checked and adjusted to suit the completed sash.

FAQ

Where does the top sash meeting rail sit?

It forms the bottom horizontal section of the upper sash. When the window closes, it meets the top rail of the lower sash at the central joint.

What is the difference between the single-glazed and double-glazed versions?

The single-glazed version is machined for traditional single glazing. The heritage double-glazed version has a profile and glazing rebate designed to accommodate a 12mm slim sightline double-glazed unit.

Will this meeting rail match my existing window?

Check the finished dimensions and profile against your existing joinery before ordering, including how it meets the lower sash rail. Contact Nottage Timber Merchants to discuss profile options or bespoke machining if you require a different section.

Can it be used on a listed building or in a conservation area?

Suitability depends on the original window and any conservation requirements. Confirm the profile and proposed glazing with your joiner and, where required, your conservation officer before ordering or starting work.

Do I need any other components?

Depending on your sash construction, you may require a matching glazing bead and a compatible Meeting Rail Connector Strip or draught seal at the central joint. Contact Nottage Timber Merchants for help selecting components to suit your chosen profile.

For other timber mouldings and joinery components to complete your sash window project, browse our pine mouldings collection. Nottage Timber Merchants supply trade and retail customers across Bridgend and South Wales, with next-day delivery available to many local postcodes.
