Sash Window Lower Meeting Rail – Grooved & Rebated Profiles

Regular price £15.95 inc. VAT
4.7 rated on (100+ reviews)
In stock
Usually ships within 24 hours
FREE cutting service

Let us know what sizes you need and we can cut them to your spec.

Eg (1 of 100x200x2.4m)

Free shipping
100% secure payments
Industry leading quality

Ask our instore experts

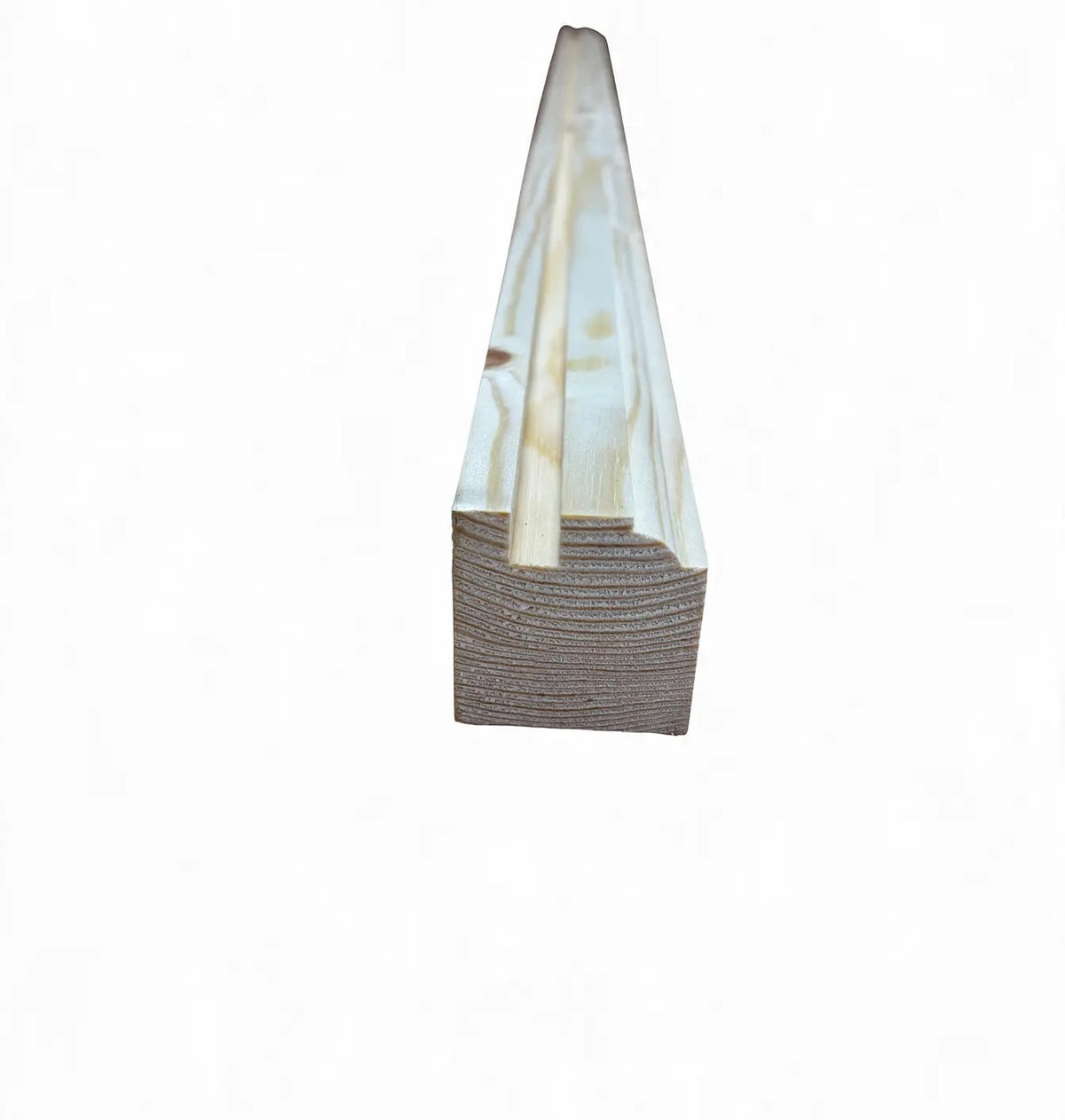

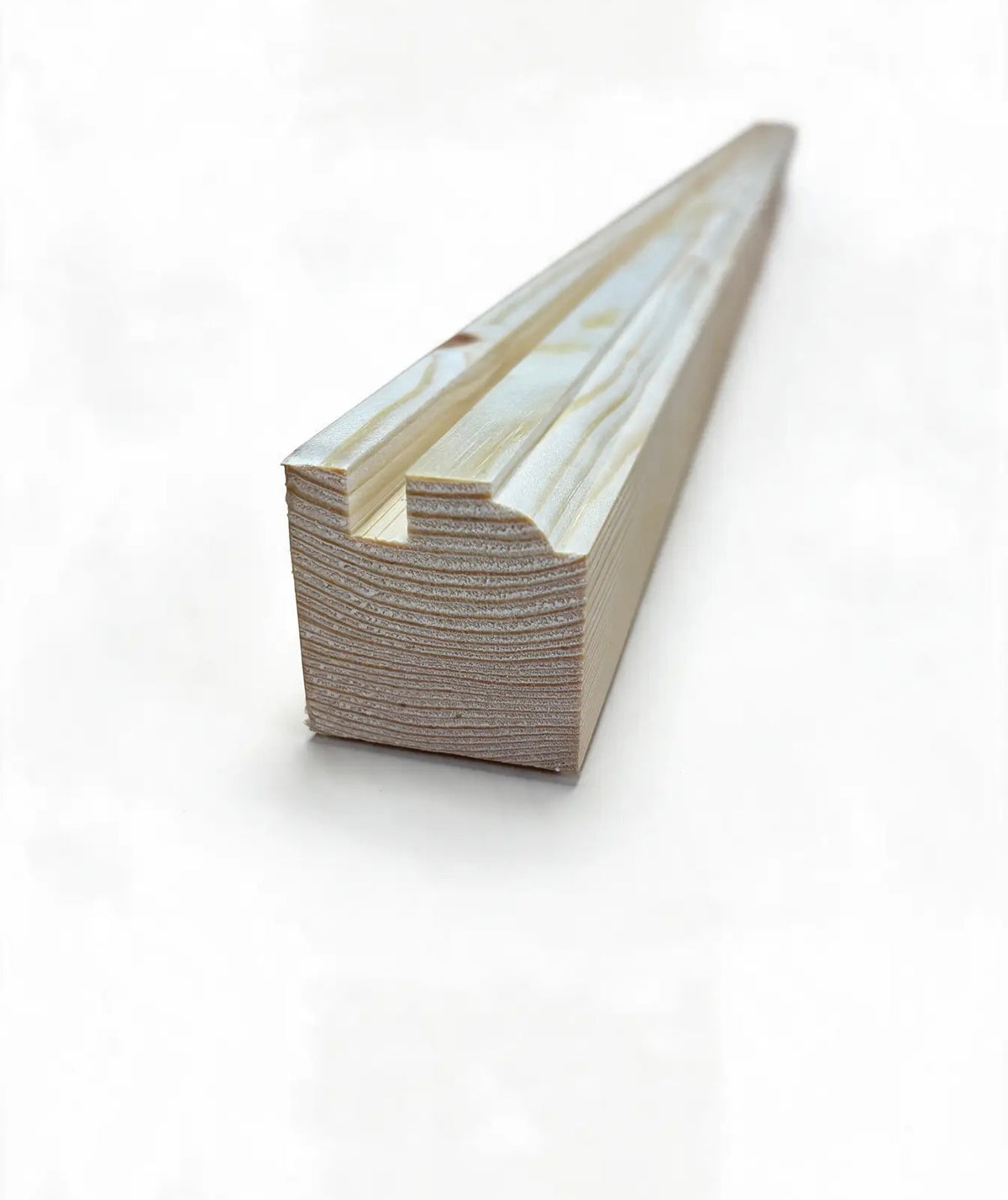

The sash window lower meeting rail sits at the top of the bottom sash in a double-hung timber sash window, meeting the upper sash when the window is closed. Precision-machined from timber and supplied in 1.2 metre lengths, it is available in traditional single-glazed profiles and a heritage double-glazed version designed to accommodate a 12mm slim sightline double-glazed unit.

Suitable for repair, replacement and new joinery work, each version helps retain the traditional appearance of timber sash windows. Choose the profile and glazing option that match your project.

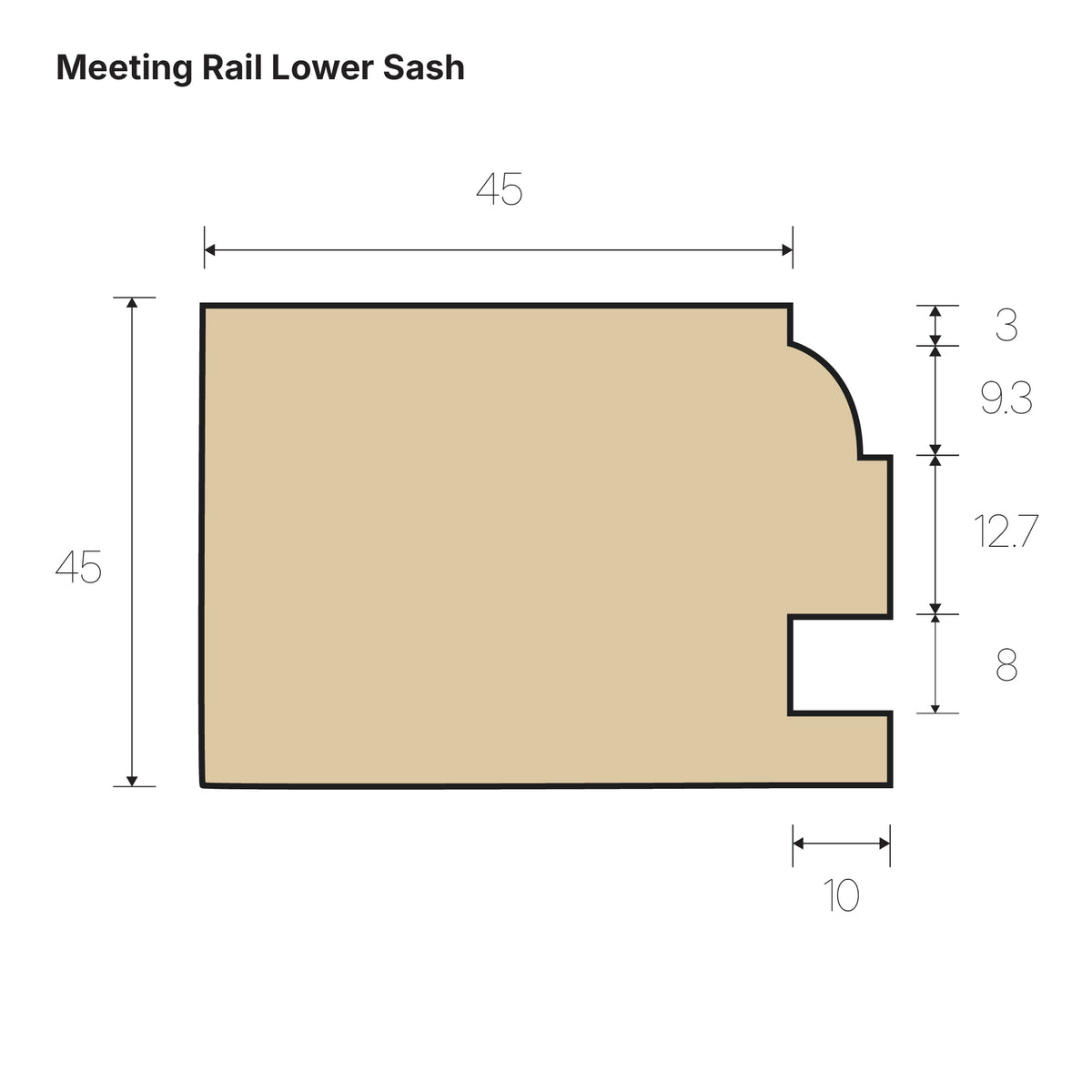

Specifications

Property Detail
Material Timber
Length 1.2 m / 1200 mm
Single-glazed options Grooved or rebated profiles
Double-glazed option Heritage profile machined to accommodate a 12mm slim sightline double-glazed unit
Application Lower meeting rail at the top of the bottom sash
Finish Machined, ready for preparation, priming and painting

What it's used for

  • Replacing damaged or rotted lower meeting rails in traditional timber sash windows

  • Repairing single-glazed sash windows using a matching grooved or rebated profile

  • Making or adapting sash windows to accommodate 12mm slim sightline double-glazed units using the double-glazed version

  • Producing new sash assemblies alongside matching stiles, glazing bars and other joinery components

  • Period property restoration where the replacement section must match the existing joinery

Fitting and handling

Store the rail flat, off the ground, in a dry, ventilated space. Allow it to acclimatise in the room or workshop where it will be fitted for at least 48 hours before cutting or fixing.

Check the selected profile against your existing joinery and glazing requirements before machining or assembly. Prepare and prime the timber, including all cut ends, and use suitable joinery adhesives and fixings for the window construction.

When fitting the double-glazed version, follow all glazing and installation instructions supplied by the manufacturer of your 12mm slim sightline double-glazed unit.

FAQ

What is the difference between the single-glazed and double-glazed versions?

The single-glazed versions are available in grooved or rebated profiles for traditional single-glazed sash windows. The heritage double-glazed version has a deeper glazing rebate machined to accommodate a 12mm slim sightline double-glazed unit.

Where does the lower meeting rail fit?

It forms the top horizontal section of the bottom sash. When the window closes, it meets the lower meeting rail section of the upper sash to create the central joint.

Can I use the single-glazed version with a double-glazed unit?

The single-glazed profiles are intended for single glazing. For a 12mm slim sightline double-glazed unit, select the double-glazed version and confirm that its dimensions suit your sash assembly.

Is it suitable for listed buildings or conservation areas?

Suitability depends on the existing window profile and any conservation requirements. Confirm the proposed section and glazing type with your joiner and, where required, your conservation officer before ordering or carrying out work.

Can I order a different length or a bespoke profile?

The standard stock length is 1.2 metres. Contact Nottage Timber Merchants to discuss longer lengths, cutting requirements or bespoke machining options.

For other timber mouldings and joinery components to complete your sash window project, browse our pine mouldings collection. Nottage Timber Merchants supply trade and retail customers across Bridgend, South Wales and beyond, with next-day delivery available to many South Wales postcodes.
